BR-Series
Medium Power Repeater

BR-Series
Medium Power Repeater

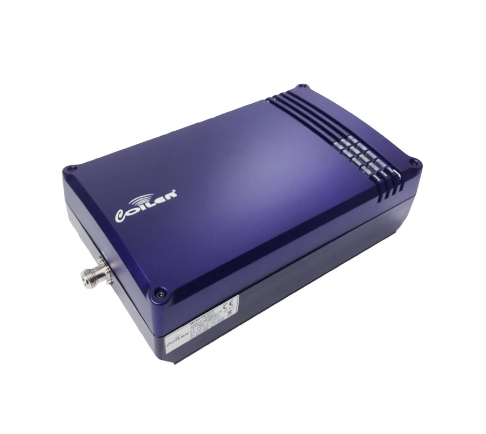

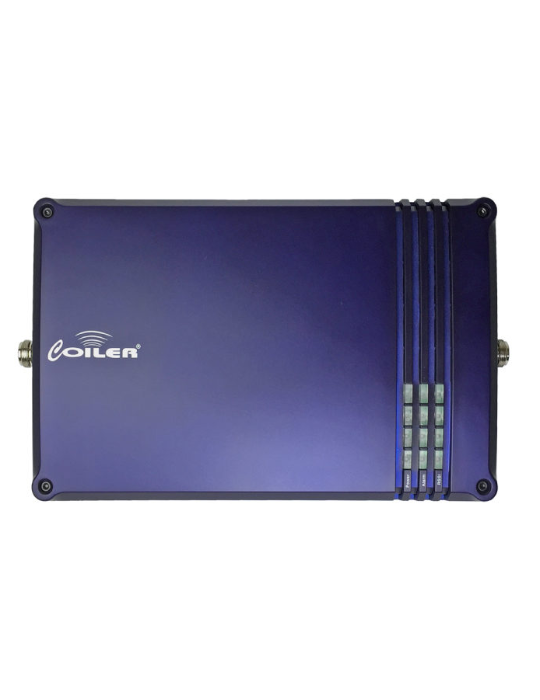

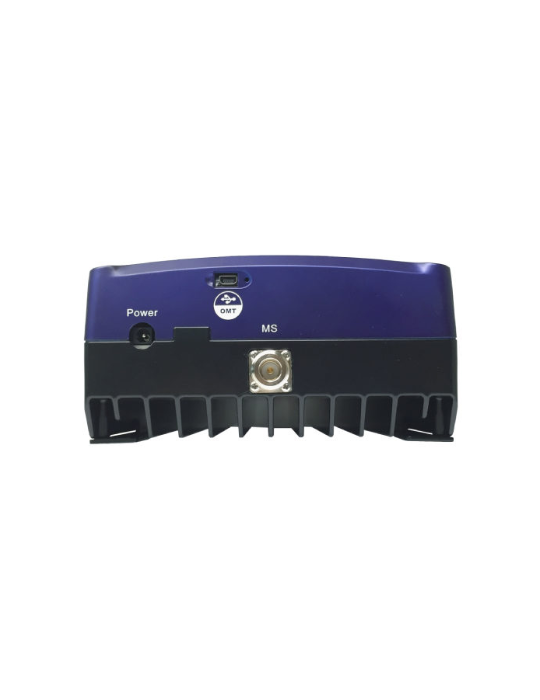

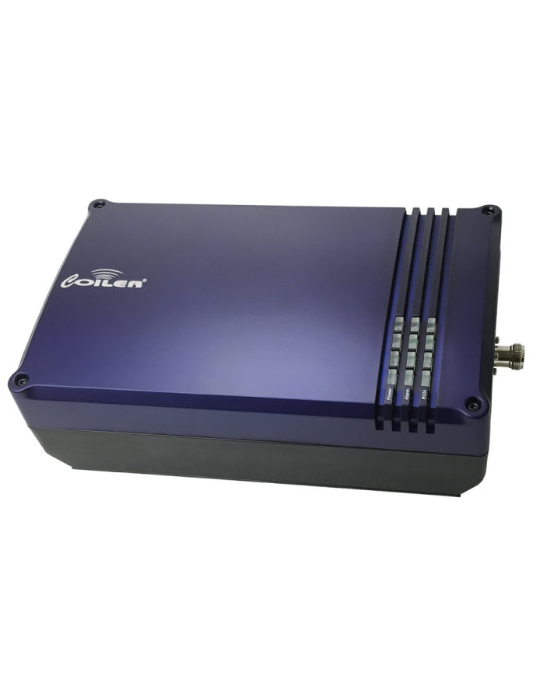

The Coiler BR-Series digital repeaters can provide reliable 2G, 3G, 4G mobile service in medium and large offices and commercial buildings boosting voice, text, and data in areas up to 10,000 square meters.

Device Specifications

BR-Series Product Description

Powerful, versatile, and designed for network safety, this model is available with three sets of gain and power: 80dB/23dBm; 80dB/20dBm; 70dB/18dBm well-suited for any project scope. BR-Series SAW filter selectivity provides sharp out-of-band rejection and ensures that only the operator's frequency is amplified, and it allows Bandwidth and Center frequency to be adjusted.



BR-Series units have a modem integrated, which allows remote control and management from our Platform Cloud Infinity. BR-Series It is the perfect future proof solution for upcoming technology change or frequency reframing.

Specification

Gain
70 | 80 dB

Output Power ( UL/DL)
18 | 20 | 23 dBm

Supported Technology
GSM | UMTS | LTE

Complete Network Safety Functions
Including AID, ASD, ATO and AGC.

Variable Bandwidth
0.6 ~ 20 MHz  or  5|10|15| 20.
Includes 2 sub-bands

Remote Management System
Includes Modem for Remote management via Cloud Infinity Software





Installation Sample



Remote Management System Could Infinity

Cloud Infinity is the latest platform developed by Coiler to allow customers to remotely monitor, manage, and control all the repeaters in your network.





Full access to remote surveillance and control of all the repeaters in your network. Coiler Repeater unit can be configured remotely.

.





Cloud Infinity map view function, you can easily visualize all the repeaters in your network.





Acknowledge and fix alarms remotely



BR-Series Portfolio



Repater Type Repeater Model Frequency -Band Network /
Technology
Gain Power Bandwith
 Single Band  BR-800 Band 20  LTE  80 dB 20 dBm  Variable
1 sub-band
 10|15| 20 MHz
 Single Band  BR-900 Band 8   GSM
UMTS
LTE
 70 | 80 dB

18|20|23 dBm   Variable
2 sub-bands
0.6 ~ 20 MHz
 5|10|15| 20 MHz
 Single Band  BR-1800  Band 3  GSM
LTE
 70 | 80 dB 18|20|23 dBm Variable
2 sub-bands
0.6 ~ 20 MHz
  5|10|15| 20 MHz
 Single Band  BR-2200 Band 1 UMTS
LTE
 70 | 80 dB 18|20|23 dBm Variable
2 sub-bands
  5|10|15| 20 MHz
 Dual Band   BR-809 Band 20 | band 8   GSM
UMTS
LTE
 75 dB 20 dBm Customized
2 sub-bands @900
1 sub-band @800
0.6 ~ 20 MHz
 5|10|15| 20 MHz
 Dual Band  BR-1822  Band 3 |Band 1 GSM
UMTS
LTE
75 dB  20 dBm  Variable
2 sub-bands per frequency
0.6 ~ 20 MHz
 5|10|15| 20 MHz
Dual Band  BR-922 Band 8 | Band 1 GSM
UMTS
LTE
75 dB  20 dBm   Variable
2 sub-bands per frequency
0.6 ~ 20 MHz
5|10|15| 20 MHz
Triple Band  BR-91822 Band 8 | Band 3|
Band 1
GSM
UMTS
LTE
75 dB 18 dBm  Customized
1 sub-band per frequency.
0.6 ~ 20 MHz
 5|10|15| 20 MHz

* Coiler design and manufacture customized repeaters.
