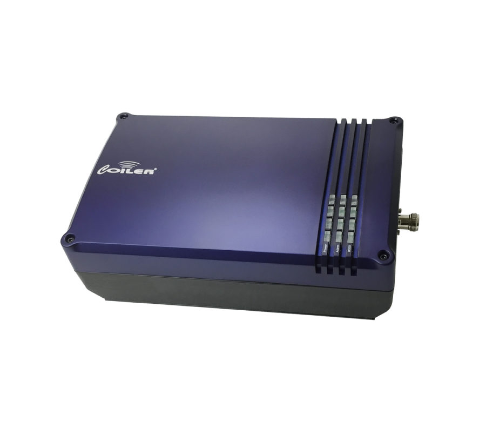

BR-Tetra
Medium Power Tetra Repeater

BR-Tetra
Medium Power Tetra Repeater

BR Tetra Series to solve inbuilding Tetra coverage available for most popular Tetra frequency from 380MHz ~ 470MHz.

Device Specifications

BR- Tetra Series Product Description



Powerful, versatile and designed for network safety, the BR-400 repeater is ideasolutions for customer looking to extend the in-building coverage of their Tetranetworks.



The BR-Tetra serires repeaters are available for most popular Tetra frequency from 380MHz ~ 470MHz.



Specification

Gain
70 dB

Power
20 dBm

Supported Technology
Tetra

Complete Network Safety Functions
Including AID, ASD, ATO and AGC.

Bandwidth
5MHz

Remote Management System
Includes Modem for Remote management via Cloud Infinity Software

Installation Sample





Remote Management System Could Infinity

Cloud Infinity is the latest platform developed by Coiler to allow customers to remotely monitor, manage, and control all the repeaters in your network.





Full access to remote surveillance and control of all the repeaters in your network. Coiler Repeater unit can be configured remotely.

.





Cloud Infinity map view function, you can easily visualize all the repeaters in your network.





Acknowledge and fix alarms remotely



BR-Series Portfolio



Repater Type Repeater Model Frequency -Band Gain Power Bandwith
 Single Band  BR-400 Type 1 UL: 380 ~ 385 MHz
DL: 390 ~ 395 MHz
 80 dB 20 dBm  Customized
1 Channel
 Single Band BR-400 Type 2 UL: 385 ~ 390 MHz
DL: 395 ~ 400 MHz
 80 dB

20 dBm Customized
1 Channel
 Single Band BR-400 Type 3 UL: 410 ~ 415 MHz
DL: 420 ~ 425 MHz
 80 dB 20 dBm Customized
1 Channel
 Single Band BR-400 Type 4 UL: 415 ~ 420 MHz
DL: 425 ~ 430 MHz
  80 dB 20 dBm Customized
1 Channel
Single Band BR-400 Type 5 UL: 450 ~ 455 MHz
DL: 460 ~ 465 MHz
 80 dB 20 dBm Customized
1 Channel
 Single Band BR-400 Type 6 UL: 455 ~ 460 MHz
DL: 440 ~ 443.5 MHz
 80 dB  20 dBm Customized
1 Channel
Single Band  BR-400 Type 7 UL: 425.5 ~ 429 MHz
DL: 465 ~ 470 MHz
(UK UHF1)
 80 dB 20 dBm  Customized
1 Channel
Single Band BR-400 Type 8 UL: 459.5 ~ 461.5 MHz
DL: 453 ~ 456 MHz
(UK UHF2)
 80 dB 20 dBm Customized
1 Channel

* Coiler design and manufacture BTO (built to order) solutions.
